Channel Baling Press APK-C
Fast and efficient - our models for edge trims
With these newly designed models even experienced users of baling presses are convinced by the high quality and reliability of our industrial balers. Highly compacted bales for an optimal truck loading, high throughput and maximum energy efficiency are the best proof for the excellent efficiency of these channel balers. These continuous, reliable machines in combination with an optimal feeding attachment together provide the modern and future-oriented waste handling for every logistic requirement.
The optimal designed hydraulic blocks, the efficient cutting system and the reliable binding unit DRILLFIX together guarantee maximum throughput and minimum energy consumption.
Models of APK-c series are suitable for edge trims and punching waste from paper, plastics and aluminium, and for various shred materials. The balers are successfully used in the paper industry and packaging production, document shredding and from plastics recycling companies.
APK-C range at a glance:
Pressure force: 320-420 kN
Theoretic capacity: 170-330 m³/h
Bale format: 800×750 mm
Bale weights: 250-350 kg
Strong pressure plate
Efficient cutting system minimizes material jams
Wire-saving binding system DRILLFIX
Hydraulic equipment with axial piston pump
Feeding hopper with safety bar
Key transfer system for maximum safety
SPS control and touch display for easy operating

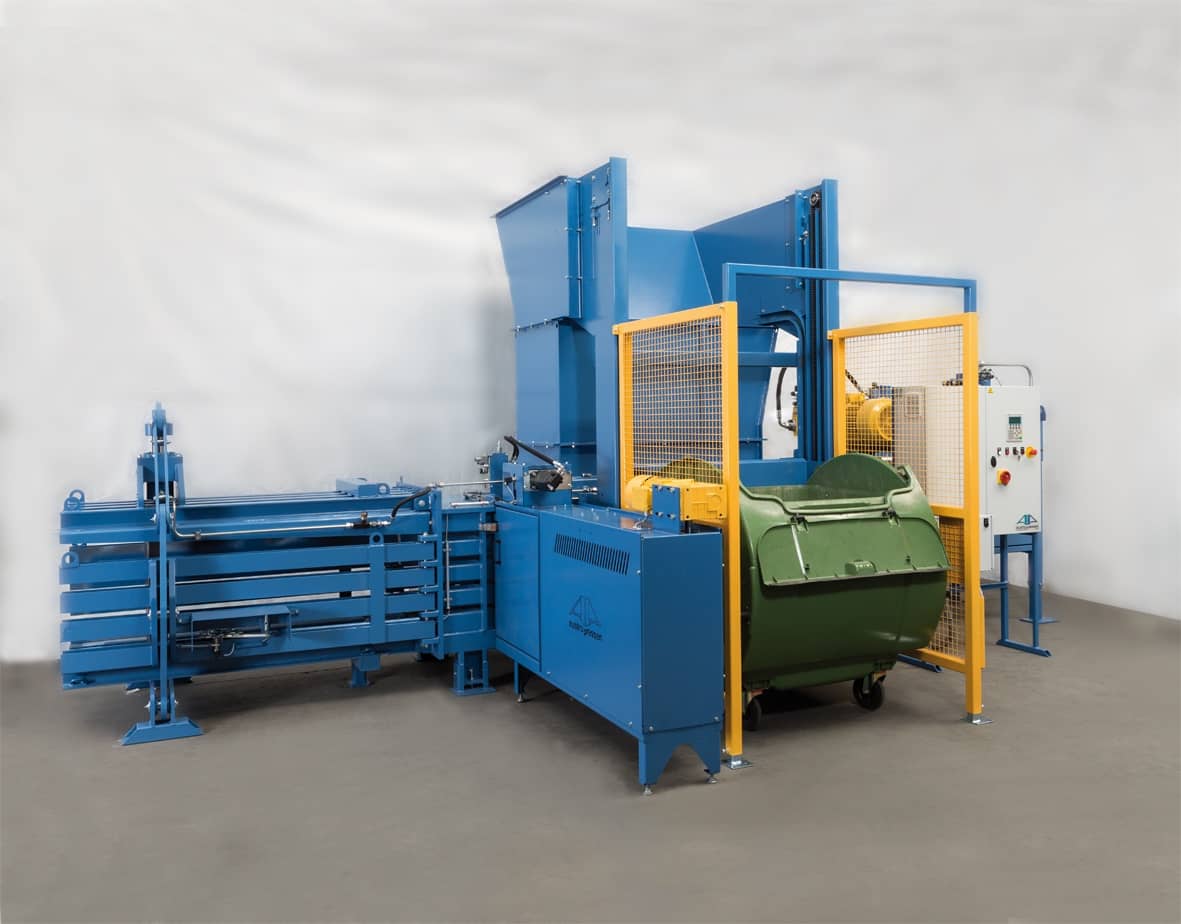

Tipping device for channel balers
Big roller guides of the press plate allow to take high pressure
Changeable bottom parts are made of wear resistant HARDOX material
High throughput and maximum energy efficiency due to ideally designed cutting unit and knives
Wire-saving binding system DRILLFIX guarantees a continuous and failure-free operation
Hydraulic unit is equipped with a self-regulating low noise axial pump including automatic switch off for minimum energy consumption
Inspection doors on both sides and key transfer system guarantee maximum operator safety and quick and safe maintenance
Automatic pressure-controlled channel adjustment on three sides guarantees high bale weights
Duo-switch for 2 pressure levels is additionally available to ensure optimal results of frequent material changes
Big range of additional equipment available (data monitoring, feeding hopper, conveyor systems, etc.)
- ModelleC-32-1250 | C-42-1000 | C-42-1250
- Press load320- 420 kN
- Specific press load54- 70 N/cm²
- Driver power15- 30 kW
- Theoretical throughput170- 330 m³/h
- Filling hatch (LxB)1000x740- 1250x740 mm
- Bale format (LxB)800x750 mm
- Bale lengthmax. 1400 mm
- Bale weight250- 350 kg
- Weight8800- 9200 kg
Models of the range APK-C are and are successfully used in the paper industry and packaging production, document shredding, repackaging and central storage facilities of the retail sector and from plastics recycling companies.
The balers are suitable for edge trims from paper, plastics and aluminium, fragments from cardboard production, various shredded materials, labels, paper and plastic bags from food or animal feedstuff production, trims from synthetic products, fibers, and much more.
Long-lasting quality from Austria
Years of designing and manufacturing high quality baling presses in Austria. This valid experience ensures reliability, durability and maximum efficiency of all Austropressen products.
