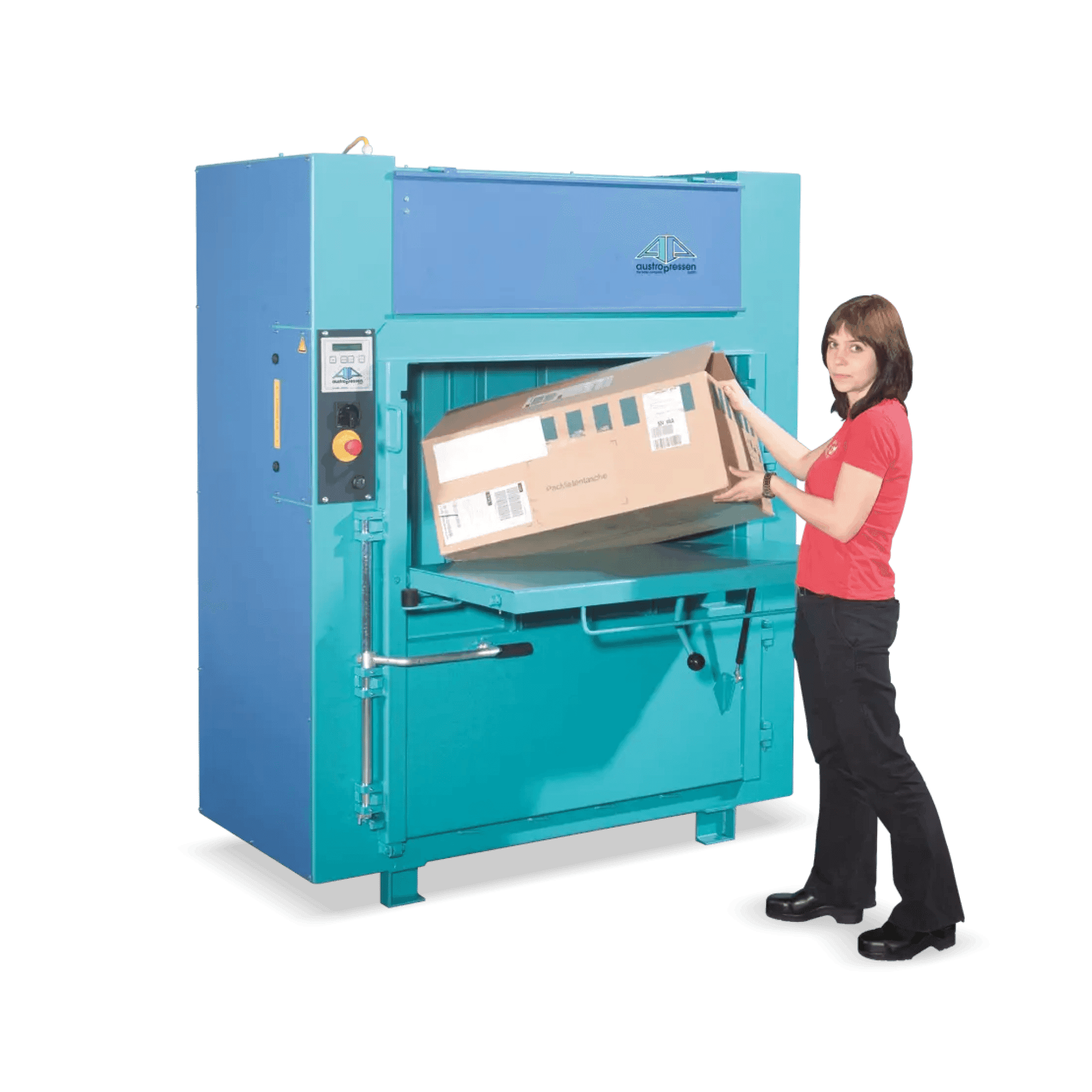

Vertical Baling Press APV 100/160
Compact, stout construction
Strong and highly efficient vertical baling press with minimum height dimensions and very stout construction. Optimal solution when space is an issue and also easy to install in old buildings with low ceiling height. Easy to operate thanks to a digital display. The machine is delivered ready for operation therefore an assembly is not needed.
The main benefits:
Low space requirement - compact construction
Maximum ease of operation due to display
Easy bale binding system with PE tape
Plug-and-Bale: no assembly is required
Categories
Vertical Balers
Display baling press series APV
Bale strapping of APV balers
Bale ejection APV 160
NaN/undefined
Minimum space required due to compact construction
The patented AWS system assures a warp-free press ram, even in the case of filling imbalances
Plug-and-Bale: baler is delivered ready for operation – assembly is not required
Simple operation thanks to digital display with operating instructions and error messages in the respective language (SPS with bale counter and operating hours counter)
Easy to handle filling flap and closing levers
Minimum maintenance effort thanks to to the use of durable materials and branded components
Dense and stackable bales due to multiple binding with plastic strapping tape
Claws inside the press chamber retain expanding material (e.g. plastic film, textiles) from returning back up – ensuring higher bale weights
The bale is fully ejected onto a pallet at the touch of a button
High durability and reliability based on our Austropressen quality standards
- ModelleAPV 100 | APV 160
- Press load100- 160 kN
- Driver power2,2- 4 kW
- Moudling cycle35 sec
- Compression box dimension (LxBxH)1000x600x1100- 1100x700x1250 mm
- Filling hatch (LxB)1000x500- 1100x600 mm
- Filling height750- 850 mm
- Bale format (LxB)1000x600x700- 1100x700x800 mm
- Bale weight100- 250 kg
- Dimensions (LxBxH)1520x820x1800- 1580x900x1950 mm
- Weight890- 1120 kg
All models and full technical data:
For compression of cardboard, paper, textiles and various plastics (film).
Long-lasting quality from Austria
Years of designing and manufacturing high quality baling presses in Austria. This valid experience ensures reliability, durability and maximum efficiency of all Austropressen products.
